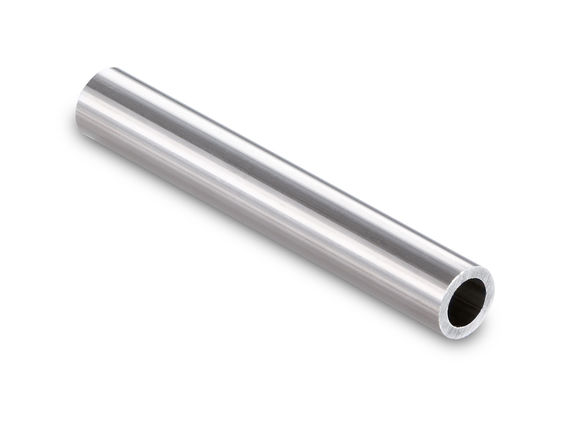

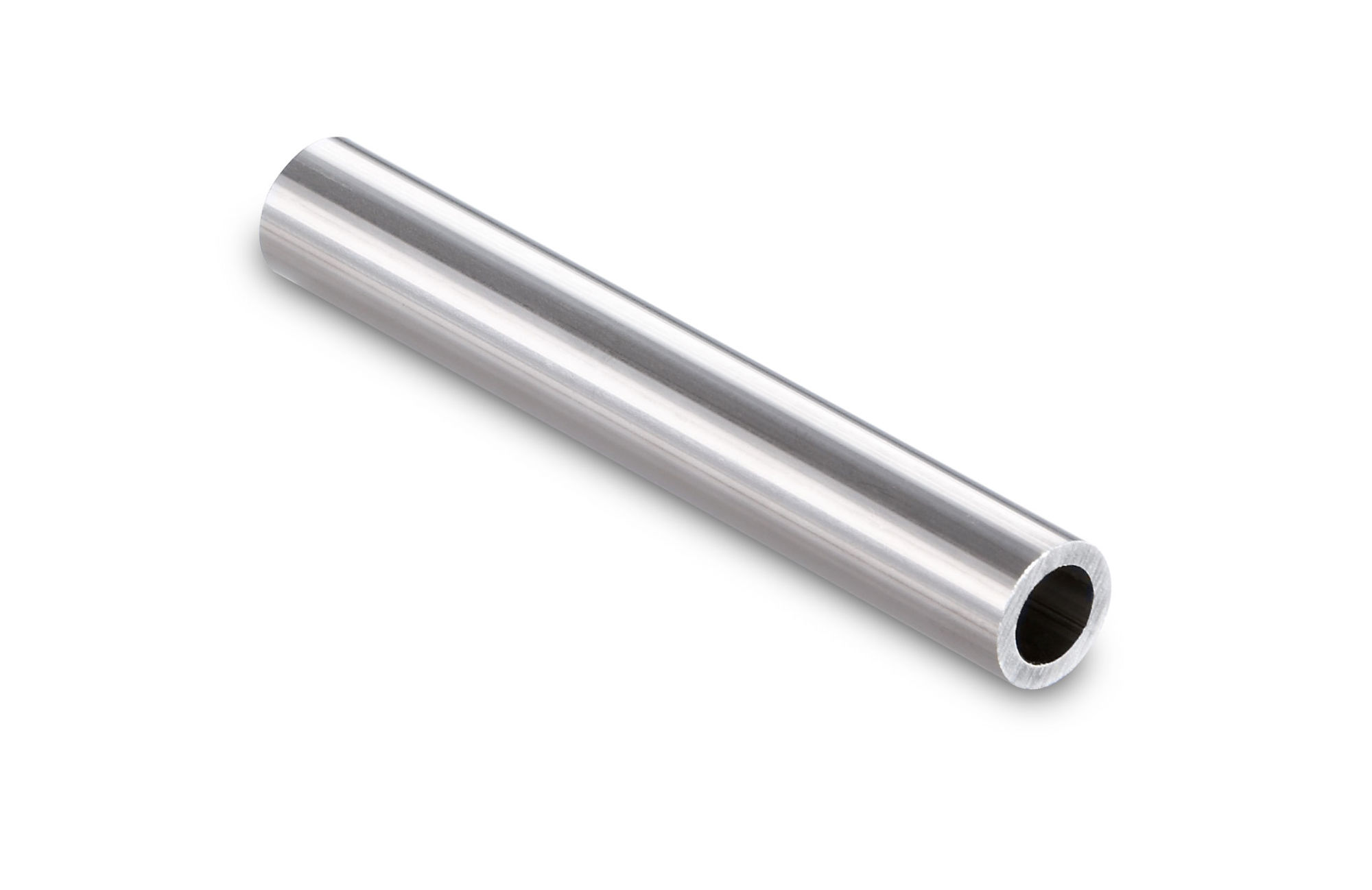

Specialty: extreme wall thickness/diameter ratios

Outline data

• Longitudially laser welded
• Diameters from 12.7 to 160 mm (1/2'' to 6 - 1/4'')
• Wall thicknesses from 0.8 to 6.25mm (0.032'' to 0.250'')
• Straight tubes up to 12m (40ft)
• In all common material grades

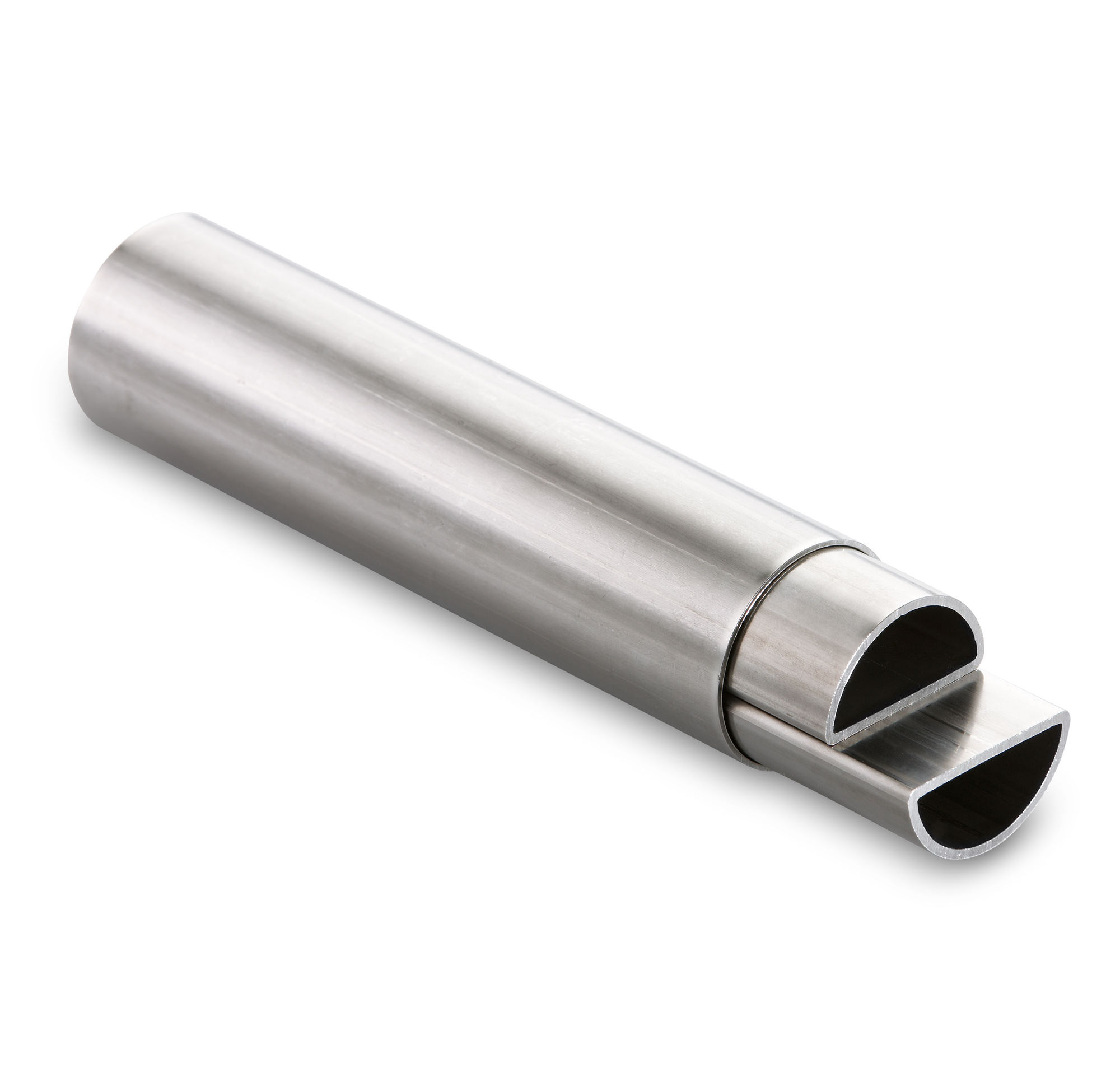

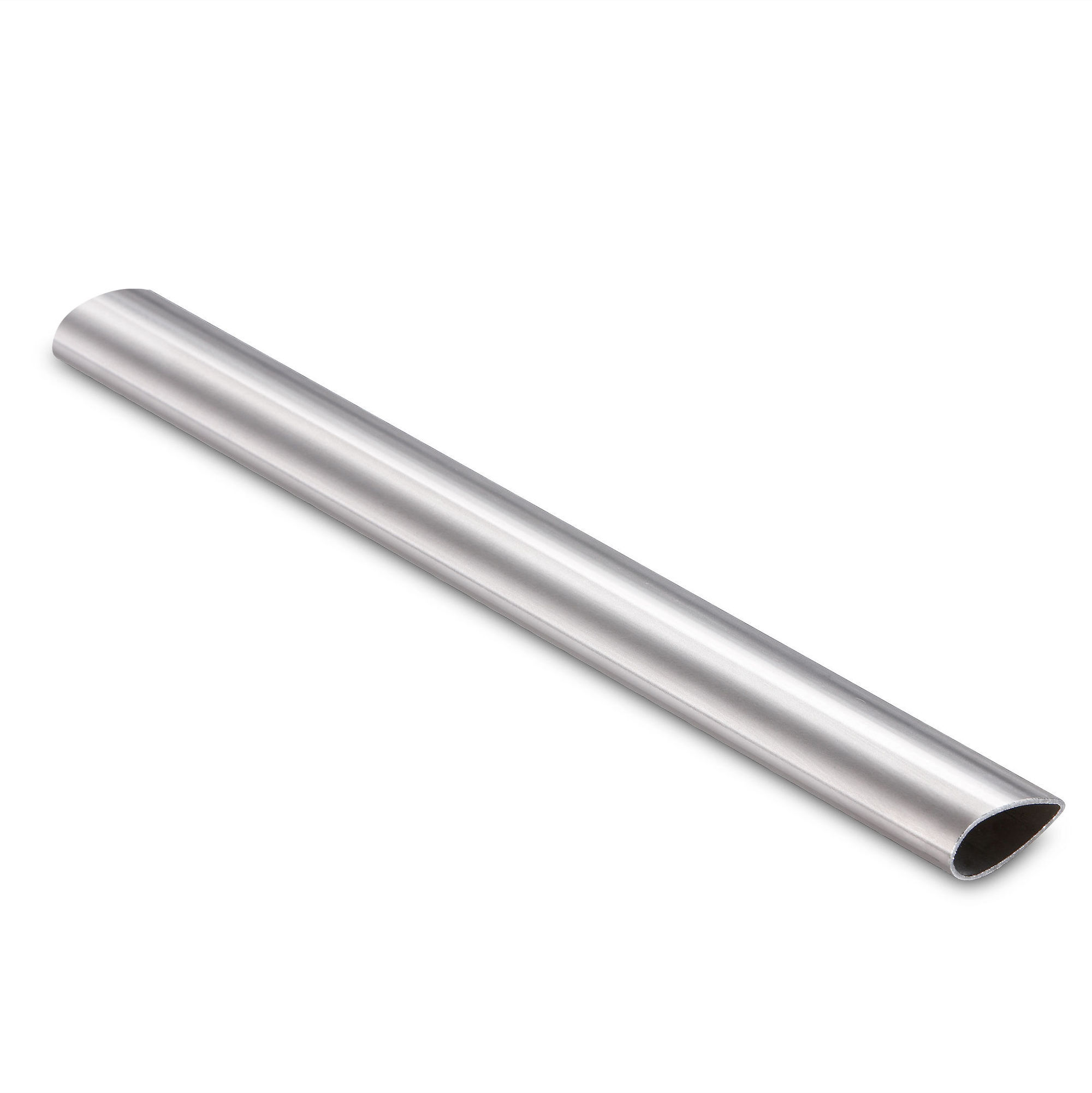

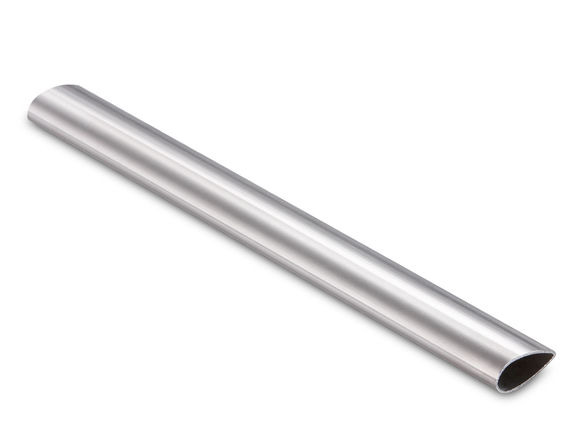

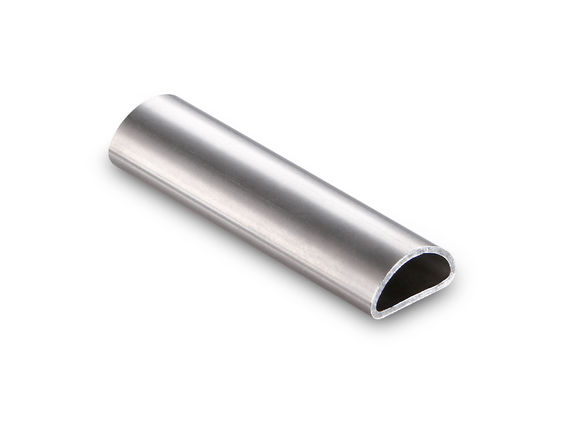

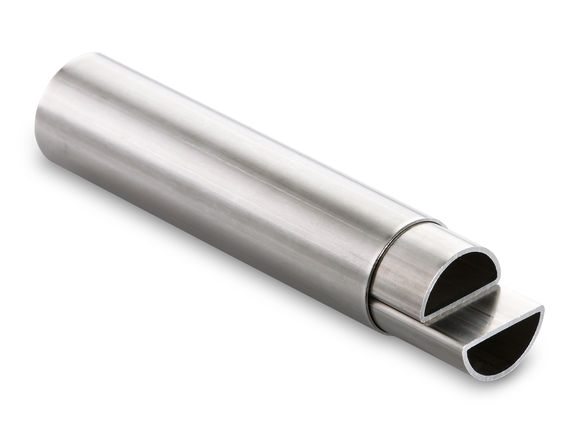

• Round, square, rectangular or customized geometries

 Materials

• Austenitic
• Ferritic
• Superferritic
• Nickel-based alloys

Square tubing:


• Edge length
  • from 12.7 to 101.6 mm (1/2'' to 4'')

• Wall thickness
  • from 1.0 to 6.25mm (0.040'' to 0.250'')

Rectangular tubing:


• Edge length
  • from 12.7 x 25.4 mm to 101.6  x 127.0mm (1/2'' x 1'' to 4'' x 5'')

• Wall thickness
  • from 1.0 to 6.25 mm (0.040'' to 0.250'')
